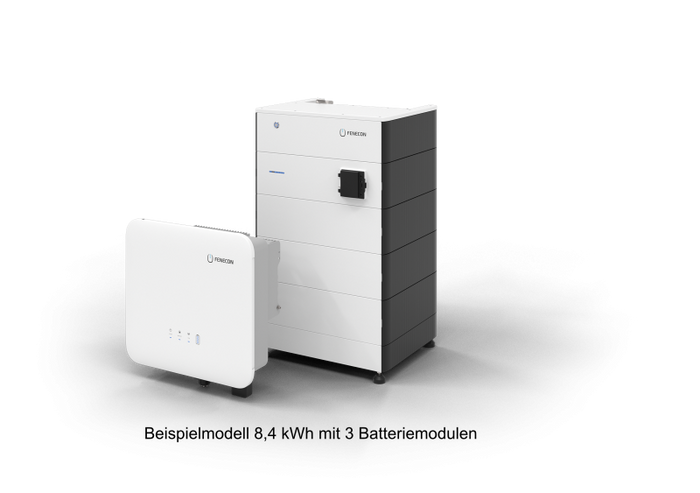

FENECON
Home 15
Residential AIO
All-in-one residential storage system for installation and compliance comparison.
AC Phase
3P
AC Rated Power
15 kW
MPPT Count
2
Battery Capacity Min
8.8 kWh
Backup / EPS Supported
true
IP Rating
IP54
Applicable Countries
Installer AI Prompt
Generate installer-ready prompt templates for ChatGPT or Gemini.
Core Electrical
Data source
AC Phase
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
AC Rated Power
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Max AC Output Current
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Power Factor Range
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
THD
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
MPPT Count
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Max DC Voltage
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
MPPT Voltage Range
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Max Current per MPPT
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Recommended PV Power
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Max Efficiency
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
EU Efficiency
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
| AC Phase | 3P |
| AC Rated Power | 15 kW |
| Max AC Output Current | 21.7 A |
| Power Factor Range | 0.8 leading - 0.8 lagging |
| THD | - |
| MPPT Count | 2 |
| Max DC Voltage | 1000 V |
| MPPT Voltage Range | 200 - 800 V |
| Max Current per MPPT | 26 A |
| Recommended PV Power | 22.5 kWp |
| Max Efficiency | 98.2 % |
| EU Efficiency | 97.8 % |
Battery
Data source
Battery Chemistry
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Battery Voltage Class
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Battery Capacity Min
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Battery Capacity Max
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Max Charge Power
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Max Discharge Power
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
| Battery Chemistry | - |
| Battery Voltage Class | HV |
| Battery Capacity Min | 8.8 kWh |
| Battery Capacity Max | 66 kWh |
| Max Charge Power | 15 kW |
| Max Discharge Power | 15 kW |
| Round-trip Efficiency | - |
Backup
Data source
Backup / EPS Supported
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Backup Rated Power
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Switch Time
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Black Start
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Parallel Support
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Max Parallel Units
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
| Backup / EPS Supported | true |
| Backup Rated Power | 15 kW |
| Switch Time | 20 ms |
| Black Start | Yes |
| Parallel Support | Yes |
| Max Parallel Units | - |
| Generator Input Supported | - |
EMS & Communication
Data source
EMS Modes
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Export Limitation Supported
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Meter Type Supported
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Remote Monitoring Platform
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
API Supported
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
| EMS Modes | Self-consumption, Backup, TOU |
| Export Limitation Supported | true |
| Meter Type Supported | FENECON Smart Meter |
| Remote Monitoring Platform | FEMS |
| API Supported | true |
Environment & Mechanical
Data source
Cooling Method
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
IP Rating
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Operating Temp Range
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Max Altitude
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Humidity Range
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Dimensions (W x H x D)
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Weight
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Noise
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
| Cooling Method | - |
| IP Rating | IP54 |
| Operating Temp Range | -10 to 45 |
| Max Altitude | 2000 m |
| Humidity Range | 0-95% |
| Wiring Terminal Type | - |
| Max Cable Size | - |
| Dimensions (W x H x D) | 506 x 1800 x 410 mm |
| Weight | 165 kg |
| Noise | - |
Compliance & Warranty
Data source
DC Surge Protection
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
AC Surge Protection
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
AFCI
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Anti-islanding
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
Certifications
Source URL: https://www.fenecon.de/fenecon-home-6-10-15
| DC Surge Protection | Type II |
| AC Surge Protection | Type II |
| AFCI | Yes |
| Anti-islanding | Yes |
| Certifications | VDE-AR-N 4105, CE |
